How Do Refrigerated Shipping Containers Work​

The global cold chain industry relies heavily on the seamless transportation of temperature-sensitive goods across vast distances. At the heart of this logistical feat is the refrigerated container, commonly known as a reefer. These specialized units have revolutionized how we consume fresh produce, pharmaceuticals, and chemicals by maintaining a consistent internal environment regardless of external weather conditions. Understanding the mechanics behind these containers is essential for businesses looking to optimize their supply chain and ensure product integrity from origin to destination.

A refrigerated container works by utilizing a sophisticated closed-loop system that combines high-grade thermal insulation with an integrated refrigeration unit. Unlike a standard refrigerator that generates cold air, a reefer functions by removing heat and moisture from the internal atmosphere and circulating chilled air through a specialized T-shaped floor grid to maintain a precise, pre-set temperature.

In the following technical deep dive, we will explore the intricate engineering that allows a refrigerated container to operate efficiently on high-seas vessels, rail, and trucks. From the complex thermodynamic cycles to the nuances of airflow dynamics, this guide provides a comprehensive overview of the technology keeping the world's perishables safe.

Table of Contents

• Temperature Control and Insulation

• Refrigeration Systems and Power Sources

• Humidity and Airflow Management

• The Structural Components of a Reefer

• Operational Applications and Industry Standards

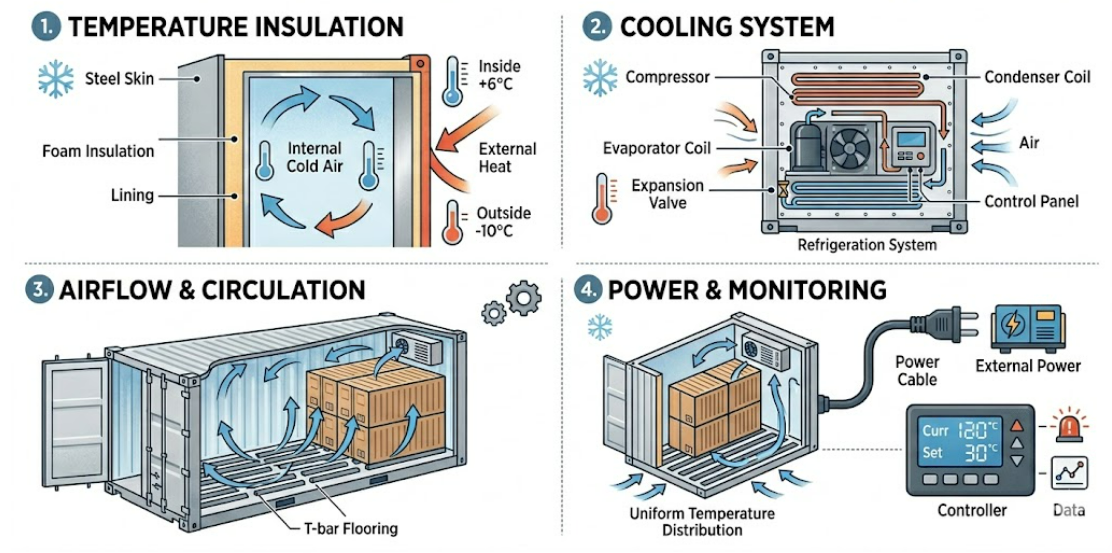

Temperature Control and Insulation

The primary function of temperature control in a refrigerated container is achieved through the synergy of a digital thermostat system and high-performance polyurethane insulation panels that minimize thermal leakage.

Temperature stability is the cornerstone of any refrigerated container operation. The walls of these units are not merely metal sheets; they are sandwich panels typically composed of an outer skin of stainless steel or aluminum and an inner lining, with a thick core of high-density polyurethane foam. This insulation acts as a thermal break, preventing the ambient heat of a tropical port or the freezing cold of a northern winter from penetrating the cargo space. Without this high R-value insulation, the refrigeration unit would have to work exponentially harder, leading to mechanical failure and increased energy consumption.

The control mechanism itself relies on advanced microprocessors. These systems allow operators to set a specific "set point" with a precision of 0.1^{\circ}C. In modern units, the system uses supply air sensors and return air sensors to monitor the environment. If the cargo is "chilled" (like fruit), the system focuses on the temperature of the air leaving the evaporator to prevent flash-freezing. If the cargo is "frozen," the system monitors the return air to ensure the entire mass of the product remains below the required threshold.

Furthermore, the integration of data logging technology ensures that every minute of the journey is recorded. This is critical for B2B transactions where "proof of cold chain" is a legal and contractual requirement. If a deviation occurs, the system can trigger alarms or even send remote notifications via satellite or cellular networks, allowing for immediate corrective action before the cargo is compromised.

Key Benefits of Advanced Insulation

1. Energy Efficiency: Superior insulation reduces the duty cycle of the compressor, saving fuel and electricity.

2. Product Longevity: Minimizing temperature fluctuations prevents cellular breakdown in fresh produce.

3. Structural Integrity: The foam core adds significant rigidity to the container walls, helping it withstand the rigors of sea travel.

Refrigeration Systems and Power Sources

A refrigerated container operates as a mobile heat pump, using a vapor-compression cycle powered by external electrical sources or portable diesel generators known as GenSets.

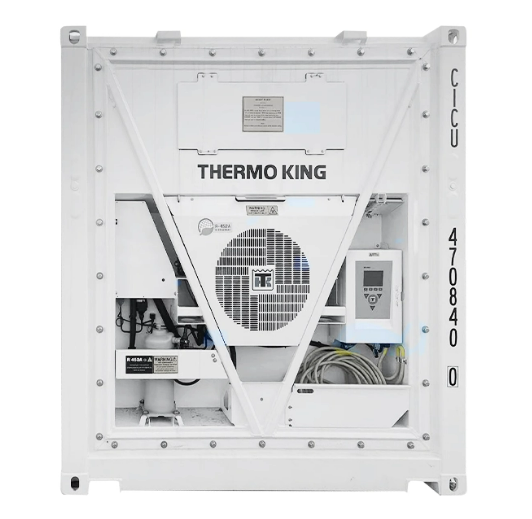

The mechanical heart of a refrigerated container is the refrigeration unit, usually mounted at the front of the container. This unit consists of a compressor, a condenser, an expansion valve, and an evaporator. The process follows the standard refrigeration cycle: the refrigerant absorbs heat from the interior via the evaporator coils and releases it into the outside atmosphere through the condenser. Because these units must operate in extreme environments, the components are treated with anti-corrosive coatings to resist salt-air degradation.

Powering these units is a logistical challenge. While on a container ship, the refrigerated container is plugged into the vessel’s massive electrical grid via specialized "reefer sockets." However, during inland transportation via truck or rail, a consistent power source is not always available. This is where "GenSets" (Generator Sets) come into play. These are large diesel-powered engines that can be "clip-on" units attached to the front of the container or "undermount" units attached to the truck chassis, providing the necessary 440V or 230V power to keep the cooling system running.

To understand the diversity of power requirements, consider the following technical specifications for standard units:

Humidity and Airflow Management

Effective airflow management in a refrigerated container is facilitated by a "bottom-air" delivery system that pushes treated air through T-shaped floor carvings to ensure uniform distribution throughout the cargo.

Airflow is perhaps the most misunderstood aspect of refrigerated container technology. Unlike domestic cooling, which often blows air from the top down, a reefer blows air from the bottom up. The floor of a refrigerated container is made of aluminum T-bar decking. The refrigeration unit forces cold air into the space beneath these bars. The air then rises through the gaps, permeates the cargo, and travels back to the top of the unit to be re-cooled. This "bottom-air delivery" ensures that even the product in the very center of the container stays at the correct temperature.

Humidity control is equally vital, particularly for "live" cargo like flowers or green vegetables that "breathe" and release moisture. If the humidity is too high, mold and rot will occur; if it is too low, the product will wilt and lose weight. Modern refrigerated container units feature an adjustable ventilation system (measured in Cubic Meters per Hour, or CMH) that allows fresh air to enter and stale, CO2-rich air to escape. Dehumidification systems can also be activated to keep the relative humidity between 60\% and 95\%, depending on the specific needs of the commodity.

For specialized shipments, such as Controlled Atmosphere (CA) transport, the system does more than just manage humidity; it actively alters the levels of Oxygen and Carbon Dioxide. By slowing down the respiration rate of the fruit, the refrigerated container can effectively "put the produce to sleep," extending its shelf life by weeks and allowing for longer sea voyages that would otherwise be impossible.

Airflow Do's and Don'ts

1. Proper Stowing: Cargo must not be stacked above the "red line" marked inside the container to allow air to return to the unit.

2. No Gaps: The T-floor must be completely covered with cargo or dunnage to prevent "short-circuiting," where air takes the path of least resistance and bypasses the goods.

3. Pre-cooling: The cargo should be pre-cooled to the target temperature before loading, as the container is designed to maintain temperature, not lower it.

The Structural Components of a Reefer

A refrigerated container is constructed with specialized materials including stainless steel interiors and aluminum exteriors to balance thermal efficiency, weight, and hygiene.

While a standard dry container is mostly Cor-Ten steel, a refrigerated container uses a sophisticated mix of materials. The interior walls are usually made of food-grade stainless steel or high-grade aluminum. This is crucial for B2B applications in the food and pharmaceutical sectors where hygiene is non-negotiable. These surfaces are easy to steam-clean and sanitize between shipments, preventing cross-contamination.

The exterior of the refrigerated container is often painted white or light gray. This is not an aesthetic choice but a functional one; light colors have a higher Albedo effect, reflecting sunlight and reducing the "heat load" on the refrigeration unit. The doors are equipped with heavy-duty gaskets that create an airtight seal, ensuring that no cold air escapes and no warm, humid air enters, which could cause ice buildup on the evaporator coils.

Structural Comparison Table

Operational Applications and Industry Standards

The versatility of the refrigerated container allows it to serve a wide range of industries, from the global seafood trade to the transport of volatile chemical compounds and life-saving vaccines.

The applications for a refrigerated container extend far beyond the local grocery store. In the pharmaceutical industry, "Cold Chain" integrity is a matter of life and death. Vaccines and biological samples require "Deep Frozen" settings, sometimes as low as -65^{\circ}C, requiring specialized "Super Freezer" units. The refrigerated container provides a reliable, scalable solution for these high-value goods, offering GPS tracking and real-time temperature monitoring to meet global health regulations.

In the chemical industry, certain substances are "Self-Accelerating Decomposition Temperatures" (SADT) sensitive. A refrigerated container provides the stable environment needed to prevent hazardous reactions during transit. Additionally, the floral industry utilizes reefers to transport millions of stems daily, relying on precise humidity and ethylene gas management to ensure flowers arrive in peak bloom.

Primary Industry Use Cases

1. Agriculture: Moving seasonal fruits (grapes, citrus, berries) across hemispheres.

2. Fisheries: Transporting frozen tuna or chilled salmon at ultra-low temperatures.

3. Pharmaceuticals: Maintaining the "Cold Chain" for insulin, vaccines, and lab reagents.

4. Military and Disaster Relief: Using containers as mobile cold storage for food and medical supplies in remote areas.
