How Are Refrigerated Containers Powered​

The global cold chain industry relies heavily on the seamless operation of a refrigerated container, commonly known in the industry as a reefer. These specialized units are designed to maintain a precise internal temperature, ranging from deep-freeze to controlled ambient levels, regardless of the external environmental conditions. The transport of perishable goods such as pharmaceuticals, fresh produce, and chemicals over thousands of miles requires a sophisticated power infrastructure that ensures the cooling unit never stops running.

To answer the core question: A refrigerated container is primarily powered by an integrated all-electric cooling unit that requires an external power supply, typically 380V to 460V three-phase electrical power. During sea transit, they connect to the ship’s power grid; while on land or during terminal storage, they utilize industrial power outlets or portable diesel-powered generators known as gensets.

Understanding the mechanics of how these units receive power is critical for logistics managers and HVAC technicians alike. The reliability of a refrigerated container depends not just on the compressor or the refrigerant used, but on the stability and specifications of the electricity provided. This article provides an in-depth exploration of the primary power sources, electrical requirements, and backup solutions used to keep global supply chains moving.

Table of Contents

1. Primary Power Sources for Reefer Containers

2. Electrical Specifications

3. Backup Systems for Power Continuity

4. Applications Beyond Shipping

5. Conclusion

Primary Power Sources for Reefer Containers

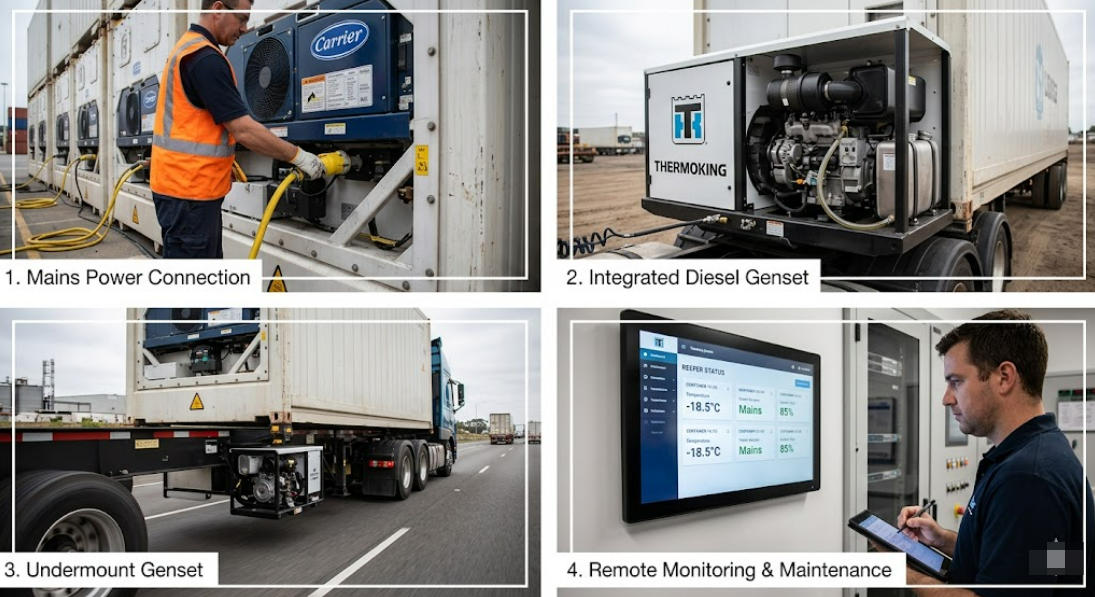

The primary power for a refrigerated container comes from three main sources: the vessel's central electrical grid during maritime transport, land-based "shore power" at port terminals, and independent diesel generators (gensets) used during rail or truck transit.

When a refrigerated container is loaded onto a container ship, it is plugged into one of the ship’s many power outlets. Modern ultra-large container vessels are equipped with massive generating capacities to support thousands of reefers simultaneously. The ship’s engineers monitor these units around the clock to ensure the voltage remains steady and the temperature setpoints are maintained. This internal grid is the lifeline of the cold chain at sea, utilizing the ship’s main engines to generate the necessary kilovolt-amps (kVA).

On land, the logistical chain transitions to shore power. When a refrigerated container arrives at a port terminal, it is moved to a dedicated "reefer stack" equipped with industrial power racks. These racks provide the high-voltage electricity needed to keep the compressors running while the unit awaits further inland transport. This stage is crucial because the "dwell time" at a port can range from a few hours to several days, making reliable infrastructure at the terminal essential for cargo safety.

For the inland leg of the journey—via truck or rail—the refrigerated container often loses access to a fixed grid. This is where "gensets" (generator sets) become indispensable. These are portable diesel engines that can be mounted either to the side of the container (clip-on) or underneath the trailer chassis (underslung). The genset converts diesel fuel into the specific high-voltage electricity required by the reefer unit, allowing the cargo to remain at the perfect temperature even while traveling across remote highways or rail lines where no external power is available.

Types of Power Delivery Systems

1. Vessel Power Points: High-capacity sockets integrated into the ship's hold and deck structures.

2. Reefer Gantries: Specialized platforms at ports that allow easy access for plugging in stacked units.

3. Clip-On Gensets: Mounted to the front of the refrigerated container, ideal for flexibility.

4. Underslung Gensets: Mounted to the chassis of a truck, keeping the container's weight distribution balanced.

Electrical Specifications

A standard refrigerated container requires a high-voltage, three-phase power supply, typically operating at 380V/50Hz or 460V/60Hz, to drive the heavy-duty industrial compressors and fans required for cooling.

The electrical architecture of a refrigerated container is designed for international compatibility, but it adheres to very strict tolerances. Most modern reefer units, such as those produced by major manufacturers, are dual-voltage capable or optimized for the 460V standard. The three-phase power is necessary because the startup current for a large compressor is significantly higher than its running current; three-phase systems provide the torque and efficiency needed to manage these loads without tripping circuit breakers.

Voltage stability is a major concern in the operation of a refrigerated container. If the voltage drops too low (brownout), the motor in the compressor can overheat while trying to compensate for the lack of "push" in the current. Conversely, spikes in voltage can damage the sensitive electronic controllers that manage the temperature logs and defrost cycles. Therefore, every refrigerated container is equipped with a sophisticated control box that acts as a safeguard, shutting the system down if the incoming power deviates beyond a safe percentage of the rated voltage.

The power cable of a refrigerated container is also a specialized piece of equipment. It is typically a 4-core cable (three phases and one earth) with a standard CEE-17 3h-pole plug. These plugs are color-coded (usually red for high voltage) and are designed to be water-resistant to withstand the harsh salt-spray environments of the open ocean. Proper maintenance of these cables and plugs is vital, as a frayed wire or a corroded pin can lead to a "hot spot," potentially causing a fire or a total loss of power to the cooling system.

Electrical Comparison Table

Backup Systems for Power Continuity

Backup systems for a refrigerated container involve a combination of redundant diesel gensets, thermal insulation properties, and advanced remote monitoring systems that alert operators the moment a power failure occurs.

In the world of high-value perishables, a power failure is an emergency. The first line of defense is not actually electrical, but physical: the insulation of the refrigerated container. These units are built with high-density polyurethane foam sandwiched between stainless steel or aluminum walls. This insulation provides a "thermal buffer," meaning that if power is lost, the internal temperature will only rise by a few degrees per hour (depending on the ambient temperature and the cargo type). This gives technicians a window of time to address the power issue before the cargo reaches its "critical limit."

The second layer of backup is the use of redundant gensets. For extremely sensitive cargo, such as vaccines or high-end chemicals, shippers may utilize two gensets or a "twin-power" configuration. If the primary diesel engine fails to start or runs out of fuel, a secondary system takes over. This level of redundancy is common in the pharmaceutical industry where a single refrigerated container might hold millions of dollars worth of temperature-sensitive medicine.

Finally, modern refrigerated container units are increasingly equipped with IoT (Internet of Things) monitoring devices. These devices are powered by a small internal battery that lasts for several days. They transmit real-time data regarding the container’s location, internal temperature, and—most importantly—the status of the power supply. If a unit is unplugged or the genset fails, an automated alert is sent to a central control room, allowing a mobile repair team to be dispatched immediately. This "digital twin" of the container ensures that "power off" events are minimized and documented.

Redundancy and Safety Features

1. High-Density Insulation: Slows temperature rise during power-off periods.

2. Automatic Restart: The controller attempts to restart the compressor once power is restored.

3. Alarm Logs: Records every power interruption for insurance and quality control purposes.

4. Remote Telemetry: Provides GPS and power status updates via satellite or cellular networks.

Applications Beyond Shipping

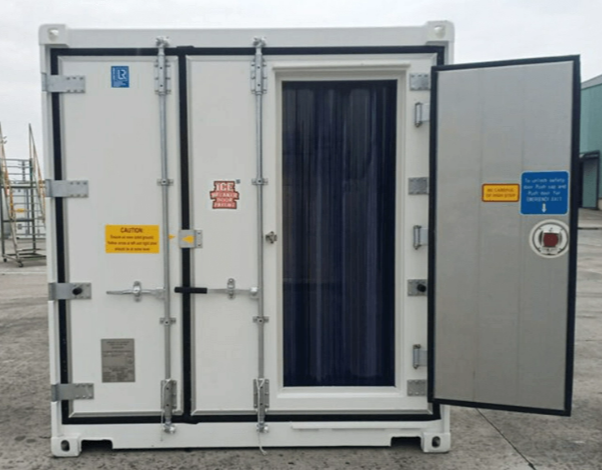

Beyond the ocean, a refrigerated container is frequently used as a stationary cold storage solution for businesses, hospitals, and large-scale events, utilizing local grid power or large-scale onsite generators.

The versatility of the refrigerated container has made it a popular choice for land-based industries. For example, during peak seasons, grocery retailers often rent reefers to expand their cold storage capacity without building expensive permanent structures. In these scenarios, an electrician installs a dedicated 460V power point on the exterior of the warehouse. The refrigerated container is simply "plugged in," providing an instant, food-grade cold room that can be scaled up or down as needed.

In the medical and disaster relief sectors, the refrigerated container serves as a mobile morgue or a vaccine distribution center. During global health crises, the ability to deploy a self-powered cooling unit to a remote area is life-saving. These units often rely on large, tow-behind industrial generators that can power multiple containers at once, creating a "hub" of cold storage in environments where the local power grid is unreliable or non-existent.

Lastly, the entertainment and catering industries utilize the refrigerated container for large-scale festivals and sporting events. These units are used to store bulk quantities of food and beverages. Because these events are often held in parks or parking lots, the power is typically supplied by a "power farm"—a cluster of large diesel generators managed by an onsite technician. The robustness of the refrigerated container makes it perfect for these temporary, high-demand applications where it must operate flawlessly in the sun and rain.

Common Onshore Uses

1. Seasonal Retail Storage: Extra capacity for holidays or harvest seasons.

2. Pharmaceutical Distribution: Maintaining the cold chain for temperature-sensitive drugs.

3. Event Catering: Bulk storage for festivals, weddings, and corporate events.

4. Disaster Relief: Providing chilled storage for food and medical supplies in hit areas.
