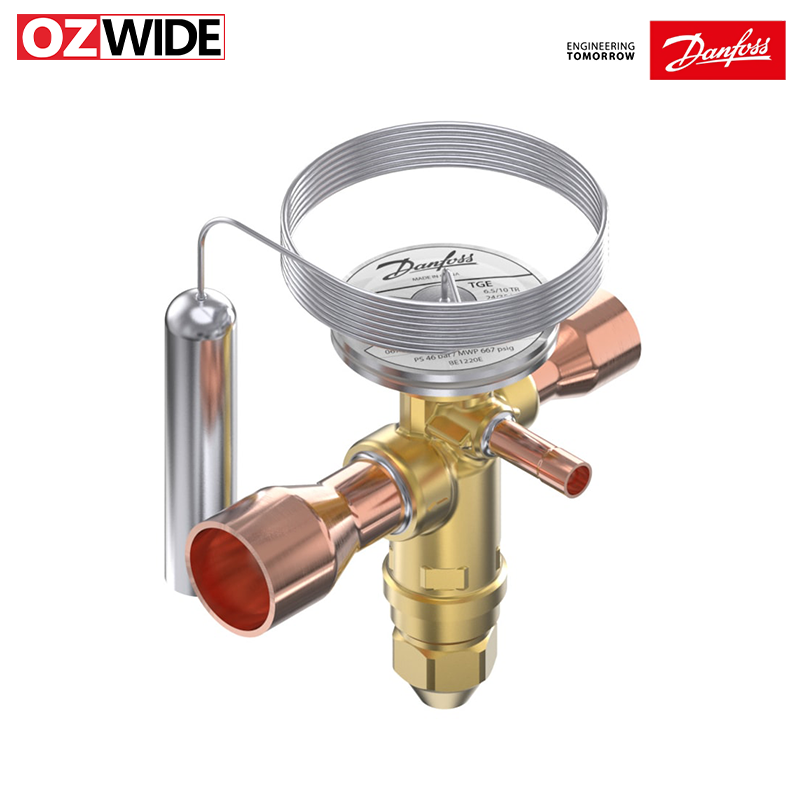

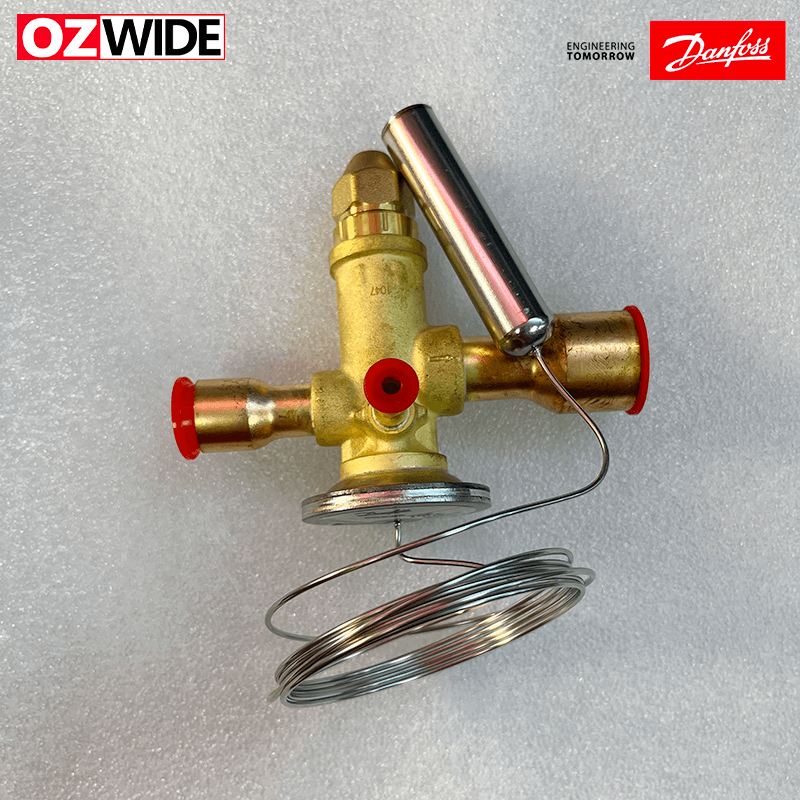

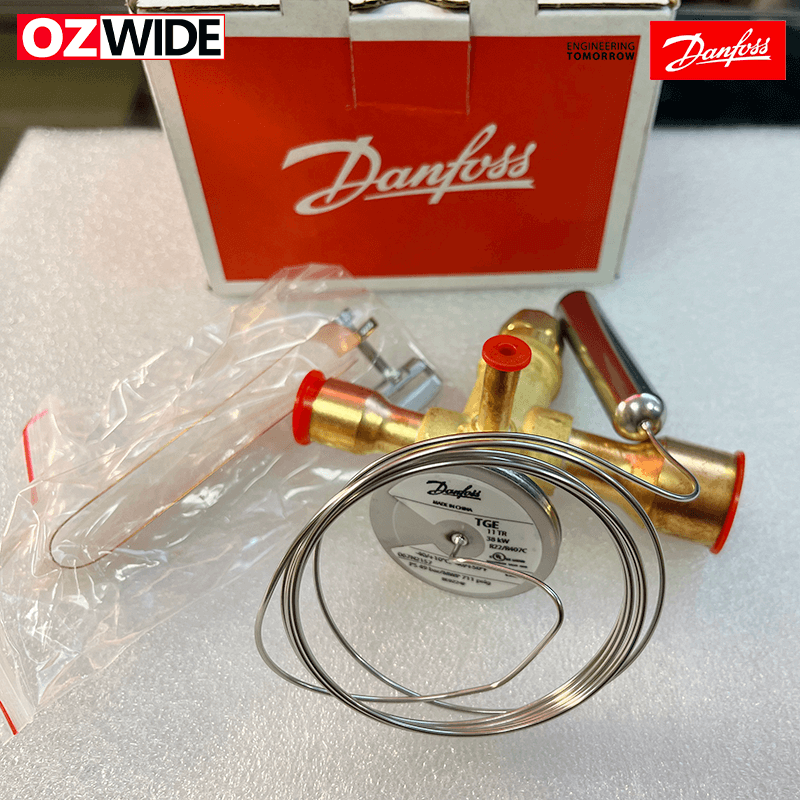

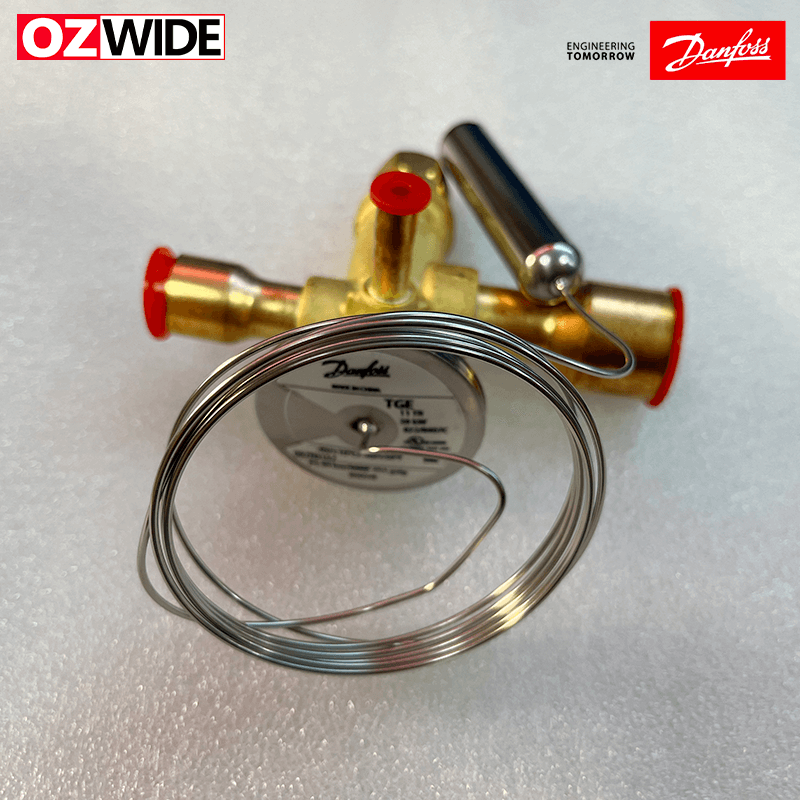

▼067N2157 - Product Specifications
Approval
C UL US LISTED; EAC; LLC CDC TYSK
Balanced port [Yes/No]
Yes
Body material
Brass
Capillary tube length [in]
59.0 in
Capillary tube length [mm]
1500 mm
China RoHS compliance
Out of scope
Connection material
Copper
Contain batteries
No
Direction
Straightway
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Element temperature max. [°C]
110 °C
Element temperature max. [°F]
230 °F
Equalization connection type
Solder, ODF
Equalization size [in]
1/4 in
Flow direction
Bi-flow
Flow direction indicator
Embossed 1-way arrow
Fluid Group
2
Identical product
067N2177
Inlet connection type
Solder, ODF
Inlet size [in]
5/8 in
Max. Working Pressure [bar]
49.0 bar
Max. Working Pressure [psig]
711 psig
Orifice capacities [TR]
11.00 TR
Orifice capacities [kW]
38.00 kW
Orifice size
11
Outlet connection type
Solder, ODF
Outlet size [in]
7/8 in
PED category
Art. 4, par. 3
Packing format
Multi pack
Parts included
Bulb strap
Pressure equalization
Externally equalized
Product Type
TGE
Product accessories
TXV accessories
Product group
Expansion valves
Product name
Thermostatic expansion valve
Proposition 65
Cancer and Reproductive Harm
Quantity per packing format
12 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Rated cap. cond. Range N [IMP]
tcond=100 °F; tevap=40 °F; tliq=98 °F
Rated cap. cond. Range N [SI]
tcond=38 °C; tevap=4.4 °C; tliq=37 °C
Refrigerants
R22/R407C
SCIP dossier no.
d44ec740-dfe8-4c0a-9644-96406f010504
SCIP dossier product name
TGE
Serviceable
No
Static Superheat (SS) [°C]
4.00 °C
Static Superheat (SS) [°F]
7.20 °F
Superheat setting
Adjustable
Temperature range [°C] [max]
10 °C
Temperature range [°C] [min]
-40 °C
Temperature range [°F] [max]
50 °F
Temperature range [°F] [min]
-40 °F
UL approved refrigerants
R22; R407C
UL evaluated
Yes
