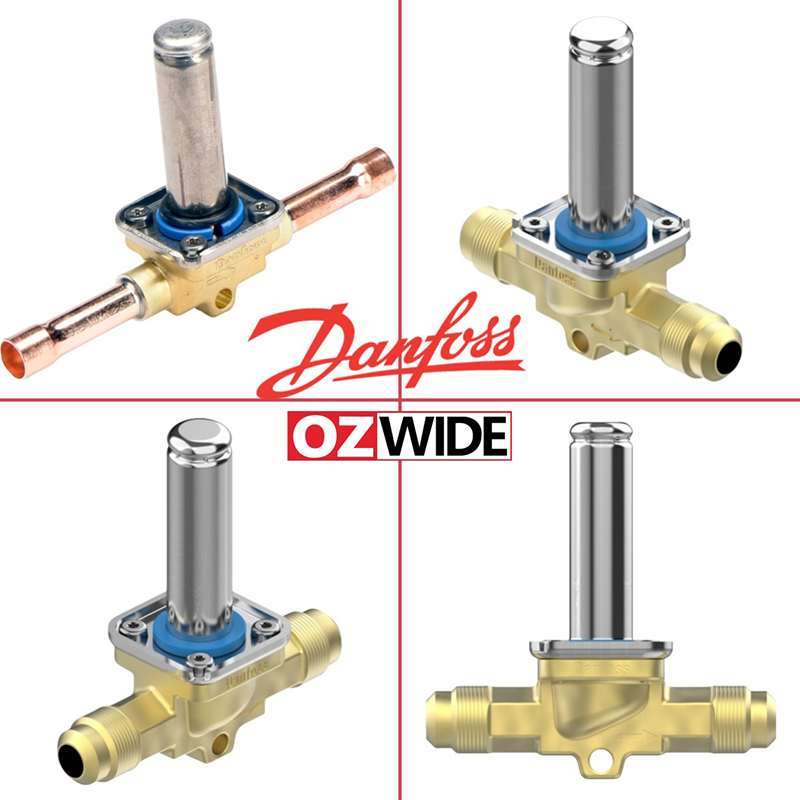

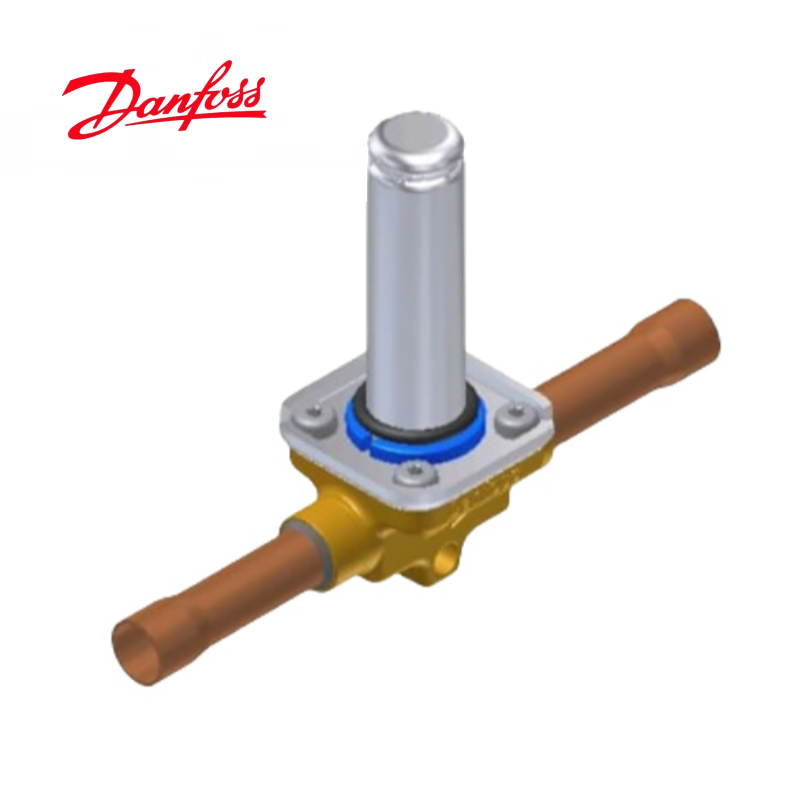

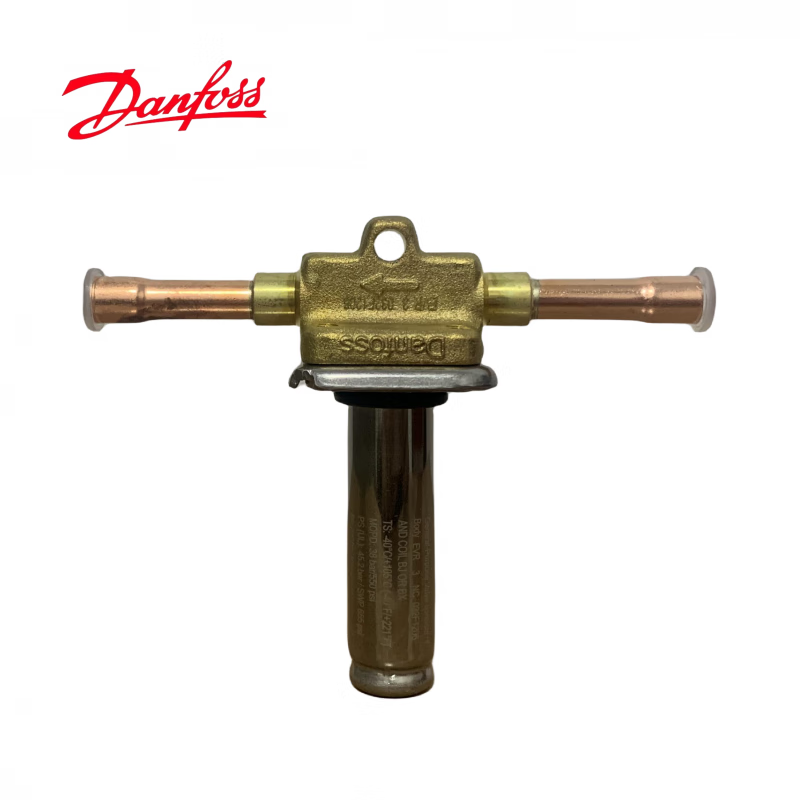

EVR3 Danfoss Solenoid Valve

▼032F1204 - Product Specifications

Actuator system [mm]  13.5 mm

Ambient temperature  -40 - 80 °C

Ambient temperature range [°F] [max]  175 °F

Ambient temperature range [°F] [min]  -40 °F

Approval  EAC; LLC CDC TYSK

Body material  Brass

China RoHS compliance  Yes with exemptions

Coil  No

Contain batteries No

Cv value [gal/min]  0.310 gal/min

Direction Straightway

EU RoHS compliance Yes with exemptions

EU RoHS exemption clause  6(a); 6(c)

Fluid Group  1; 2

Function  NC

Identical product  032F5084

Inlet connection type  Solder, ODF

Inlet size [in]  3/8 in

Kv value [m³/h]  0.270 m³/h

Lubricants compatibility  AB; MO; PAG; PAO; POE; PVE

MOPD[bar/psi]  Coil Dependent

MWP [bar] PED compliant  49 bar

Manual operation option  No

Max. Working Pressure [bar]  45.2 bar

Max. Working Pressure [psig]  655 psig

MaxOPD[bar] 10W AC  38 bar

MaxOPD[psi] 10W AC  550 psi

Medium temp. range note  Defrost max 130°C/265°F

Medium temperature range [°C] [max]  105 °C

Medium temperature range [°C] [min]  -40 °C

Medium temperature range [°F] [max]  221 °F

Medium temperature range [°F] [min]  -40 °F

MinODP [bar]  0.000 bar

Orifice size [mm]  3.30 mm

Outlet connection type  Solder, ODF

Outlet size [in]  3/8 in

PED category  Art. 4, par. 3

Packing format  Multi pack

Parts Program name  EVR

Product Type  EVR 3

Product accessories  Solenoid valve accessories

Product group  Solenoid valves

Product name  Solenoid valve

Proposition 65  Cancer and Reproductive Harm

Quantity per packing format  24 pc

REACH Candidate List substances  Lead (CAS no. 7439-92-1)

Refrigerants

R1234yf; R1234ze(E); R125; R134a; R152a; R22; R290; R32; R404A; R407A; R407C; R407F; R407H; R410A; R413A; R417A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R507A; R512A; R513A; R513B; R515A; R515B; R516A; R600; R600a

SCIP dossier no.

52f475eb-6026-442a-932e-863e4660eac8

SCIP dossier product name

EVR 2-8/EVO 100-102

Serviceable  Solenoid valve spare parts

Type designation  Solenoid valve, Solder

UL approved refrigerants

R1234ze(E); R125; R134a; R152a; R22; R290; R32; R404A; R407A; R407C; R407F; R407H; R410A; R417A; R422A; R422B; R422D; R438A; R442A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454B; R463A; R507A; R513A; R513B; R515A; R515B; R600; R600a

Valve operation  Direct
