▼Introduction

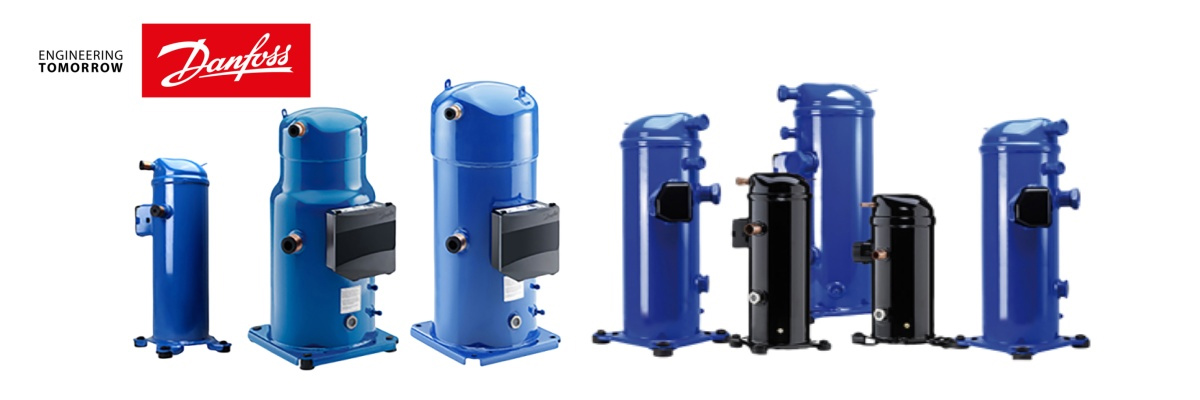

Danfoss is committed to providing energy efficient, sustainable and smart refrigeration compressors for a varied range of commercial applications such as cold rooms, display cabinets, ice making machines, glass door merchandisers, process cooling etc. They reduce operating costs, and their compact, lightweight design makes them ideal for small spaces. They feature variable-speed/inverter options for increased efficiency, and more accurate temperature and humidity control. Qualified for low and natural refrigerants.

▼Technical Specifications

MLZ-medium temperatures                         50 Hz                             R404A

50HZ·380-400V/3-PHASES		COOLING CAPACITY INW140℃ CONDENSING TEMPERATURE								EN12900
	MLZ Models	-25℃	-20℃	-15℃	-10℃	-5℃	0℃	5℃	10℃	Cooling capacity  W	Power input kW	COP w/W	Sound power dB(A)
	MLZ015	1660	2180	2770	3450	4240	5150	6210	7420	3080	1.75	1.76	65
	MLZ019	2360	2990	3730	4580	5570	6730	8090	9670	4150	2.16	1.93	65
	MLZ021*	2510	3180	3950	4850	5910	7150	8600	10260	4410	2.27	1.94	65
	MLZ026*	3060	3860	4810	5940	7280	8860	10690	12810	5410	2.90	1.86	67
	MLZ030*	3700	4700	5870	7260	8890	10790	12980	15490	6600	3.35	197	70
	MLZ038*	4500	5680	7060	8690	10600	12810	15370	18280	7880	3.86	2.05	71
	MLZ045*	5350	6810	8540	10570	12950	15710	18890	22530	9560	4.89	1.95	71
	MLZ048*	5810	7460	9380	11610	14190	17160	20560	24420	10490	5.38	1.95	72
	MLZ058*	6450	8450	10750	13410	16460	19960	23940	28430	12110	6.08	199	74
	MLZ066*	7640	9850	12450	15530	19130	23320	28150	33680	14060	7.01	2.01	74
	MLZ076	9550	11980	14780	18060	21930	26510	31920	38250	16160	7.93	2.04	74
EN 12900 MBP: Evaporating temperature: -10℃; Condensing temperature: 45℃; Subcooling OK; Superheat 10K *Models certified by Asercom

50Hz data

Model		Nominal Cap.60Hz	Nominal cooling capacity		Power input	COP	E.E.R.	Swept volume	Displacement ①	Oil charge	Net weight ②
		TR	W	Btu/h	kW	W/W	Btu/h/W	cm³/rev	m³/h	dm³	kg
R22 SINGLE	SM084	7	20400	69600	6.12	3.33	11.4	114.5	19.9	3.25	64
	SM090	7.5	21800	74400	6.54	3.33	11.4	120.5	21	3.25	65
	SM100	8	23100	78800	6.96	3.33	11.4	127.2	22.1	3.25	65
	SM110	9	25900	88400	7.82	3.32	11.3	144.2	25.1	3.25	73
	SM112	9.5	27600	94200	7.92	3.49	11.9	151.5	26.4	3.3	64
	SM120	10	30100	102700	8.96	3.36	11.5	166.6	29	3.25	73
	SM124	10	31200	106500	8.75	3.56	12.2	169.5	29.5	3.3	64
	SM147	12	36000	122900	10.08	3.57	12.2	193.5	33.7	3.3	67
	SM148	12	36100	123200	10.8	3.34	11.4	199.0	34.6	3.6	88
	SM161	13	39000	133100	11.59	3.37	11.5	216.6	37.7	3.6	88
	SM175	14	42000	143300	12.47	3.37	11.5	233.0	40.5	6.2	100
	SM/SY185	15	45500	155300	13.62	3.34	11.4	249.9	43.5	6.2	100
	SY240	20	61200	208900	18.2	3.36	11.5	347.8	60.5	8	146
	SY300	25	78200	266900	22.83	3.43	11.7	437.5	76.1	8	153
	SY380	30	94500	322500	27.33	3.46	11.8	531.2	92.4	8.4	158
R407CSINGLE	SZ084	7	19300	65900	6.13	3.15	10.8	114.5	19.9	3.25	64
	SZ090	7.5	20400	69600	6.45	3.16	10.8	120.5	21.0	3.25	65
	SZ100	8	21600	73700	6.84	3.15	10.8	127.2	22.1	3.25	65
	SZ110	9	24600	84000	7.76	3.17	10.8	144.2	25.1	3.25	73
	SZ120	10	28600	97600	8.99	3.17	10.8	166.6	29.0	3.25	73
	SZ147	12	34900	119079	9.92	3.52	12.0	193.5	33.7	3.30	67
	SZ148	12	35100	119800	10.99	3.19	10.9	199.0	34.6	3.60	88
	SZ161	13	38000	129700	11.84	3.21	11.0	216.6	37.7	3.60	88
	SZ175	14	40100	136900	12.67	3.17	10.8	233.0	40.5	6.20	100
	SZ185	15	43100	147100	13.62	3.16	10.8	249.9	43.5	6.20	100
	SZ240	20	59100	201700	18.55	3.19	10.9	347.8	60.5	8.00	146
	SZ300	25	72700	248100	22.73	3.20	10.9	437.5	76.1	8.00	153
	SZ380	30	89600	305800	27.59	3.25	11.1	531.2	92.4	8.40	158

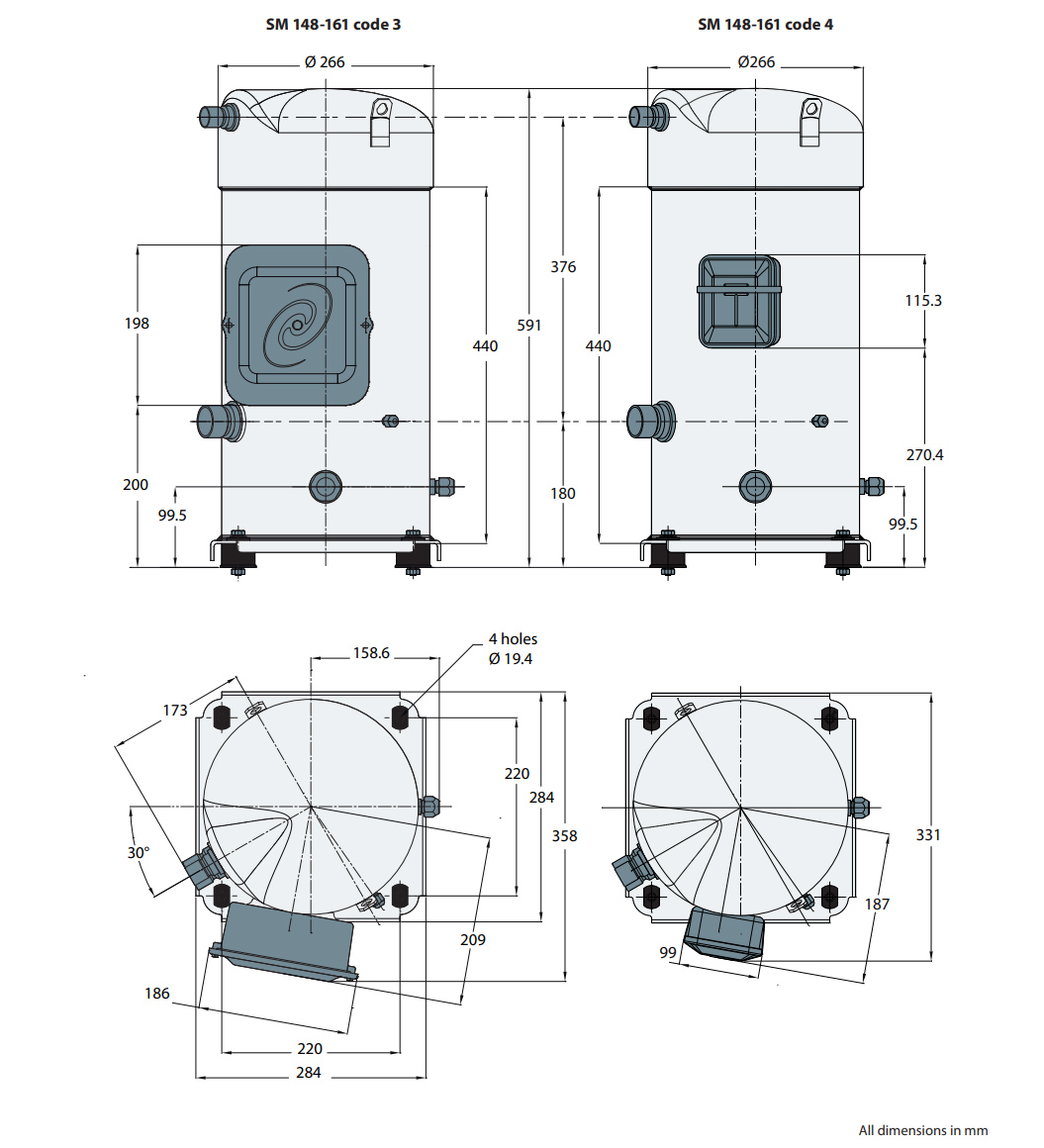

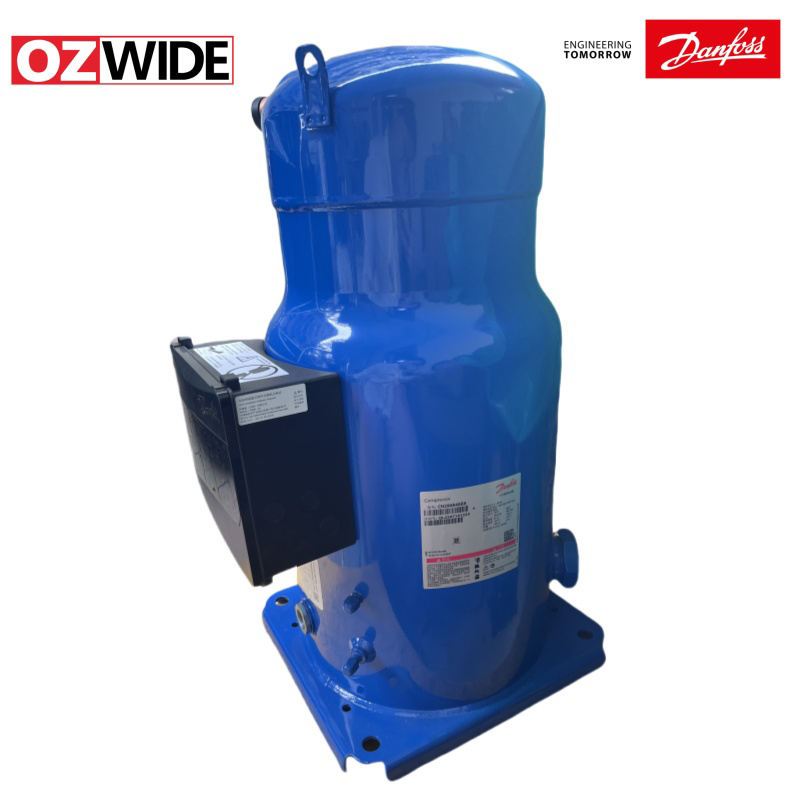

SM.SZ 148-161

▼Application
