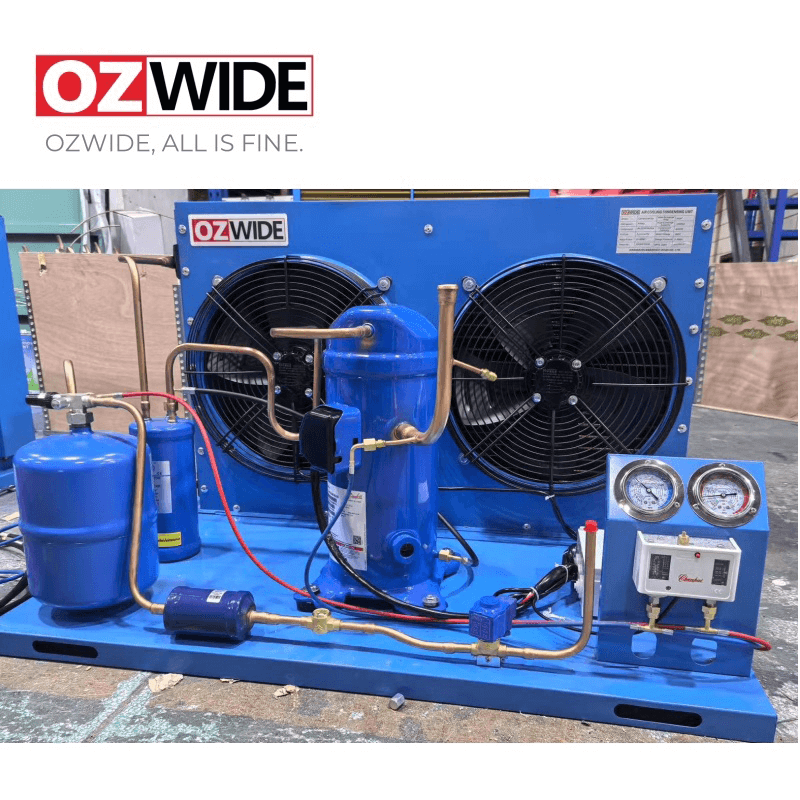

Danfoss Condensing Unit

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Danfoss condensing units are widely used in various commercial and industrial refrigeration needs due to their high efficiency, reliability, easy installation and maintenance. ‌


Main features and advantages ‌High efficiency and energy saving‌: Danfoss condensing units use advanced scroll compressors or piston compressors, optimize system design, improve heat exchange efficiency, reduce energy consumption and failure rate‌.


Safety and reliability‌: All products have undergone strict electrical strength tests to ensure safety during operation. The unit is equipped with a variety of protection devices, such as high and low voltage protection, phase sequence protection, and voltage and current protection, to further ensure the stable operation of the equipment. ‌


‌Environmental protection and energy saving‌: The use of high-efficiency refrigerants such as R404A and R134a complies with strict global energy regulations, and provides alternative refrigeration solutions such as R290 and R1234yf to meet different environmental protection requirements‌.


‌Low maintenance cost‌: The unit has a compact design, easy maintenance, and a long service life, which reduces long-term operating costs‌.


‌Intelligent design‌: Some models are equipped with condensing fan control, which automatically adjusts the fan speed according to the condensing pressure to further save energy‌.


Application scenarios Danfoss condensing units are suitable for a variety of commercial and industrial scenarios, including milk cooling tanks, cold storage, fermentation rooms, canteens, hospitals, etc.


Its efficient and reliable performance makes it excel in these fields, helping users save energy and maintenance costs and improve production efficiency.


Application Guidelines Technical specifications

50 Hz  R404A


  Model



     HP

      Nominalcooling capacity*

Powerinput*                    Efficiency* Swept volume Displacement Oil charge Net weight(with oil)
            W           BTU/h          KW
COP W/W
EER     Btu/h/W          cm3/ rev         m3/h Litres                   kg
MLZ015
2 3300 11300  1.75 1.89 6.45 33.8 5.9 1.1 31
MLZ019
2.5 4500 15400 2.16 2.06 7.03 43.5 7.6 1.1 31
MLZ021 3 4700 16000 2.27 2.08 7.10 46.2 8.0 1.1 31
MLZ026 3.5 5800 19800 2.9 2.00 6.83 57.1 9.9 1.1 31
MLZ030 4 7100 24200 3.35 2.11 7.20 68.8 12.0 1.6 41
MLZ038

5

8400 28700 3.86 2.19 7.47 81.0 14.1 1.6 41
MLZ042 5.5 9500 32400 4.72 2.02 6.89 93.1 16.2 1.6 41
MLZ045 6 10200 34800 4.81 2.11 7.20 98.6 17.2 1.6 41
MLZ048 7 11100 37900 5.17 2.14 7.30 107.5 18.7 1.6 41
MLZ058 7.5 13000 44400 6.08 2.13 7.27 126.0 21.9 2.7 47
MLZ066 9 15100 51500 7.01 2.15 7.34 148.8 25.9 2.7 47
MLZ076 10 17300 59000 9.93 2.18 7.44 162.4 28.3 2.7 47

R134a and R22 are also applicable. Please consult the merchant to obtain specific parameters.
