SH Series Scroll Compressor – R410A – 50 Hz
MODEL |
标称冷吨 60 [Hz] |
标称制冷量 |
输入功率 |
COP |
E.E.R. |
排量 |
排量 (1) |
注油量 |
净重 (2) |
|
[TR] |
[W] |
[Btu/h] |
[kW] |
[W]/[W] |
[Btu/h]/[W] |
[cm3/rev] |
[m3/h] |
[dm3] |
[kg] |
|
SH 090 |
7.5 |
22300 |
76100 |
7.19 |
3.10 |
10.58 |
88.40 |
15.4 |
3.0 |
58.0 |
SH 105 |
9 |
26800 |
91500 |
8.47 |
3.17 |
10.82 |
103.50 |
18.0 |
3.3 |
64.0 |
SH 120 |
10 |
30000 |
102400 |
9.46 |
3.17 |
10.82 |
116.90 |
20.3 |
3.3 |
64.0 |
SH 140 |
12 |
34700 |
118400 |
10.58 |
3.28 |
11.19 |
133.00 |
23.1 |
3.3 |
67.0 |
SH 161 |
13 |
38800 |
132400 |
12.15 |
3.19 |
10.89 |
151.70 |
26.4 |
3.3 |
69.0 |
SH 184 |
15 |
44700 |
152600 |
13.73 |
3.25 |
11.09 |
170.30 |
29.6 |
3.6 |
71.5 |
SH 180 |
15 |
44500 |
151900 |
13.87 |
3.21 |
10.96 |
170.20 |
29.6 |
6.7 |
108.0 |

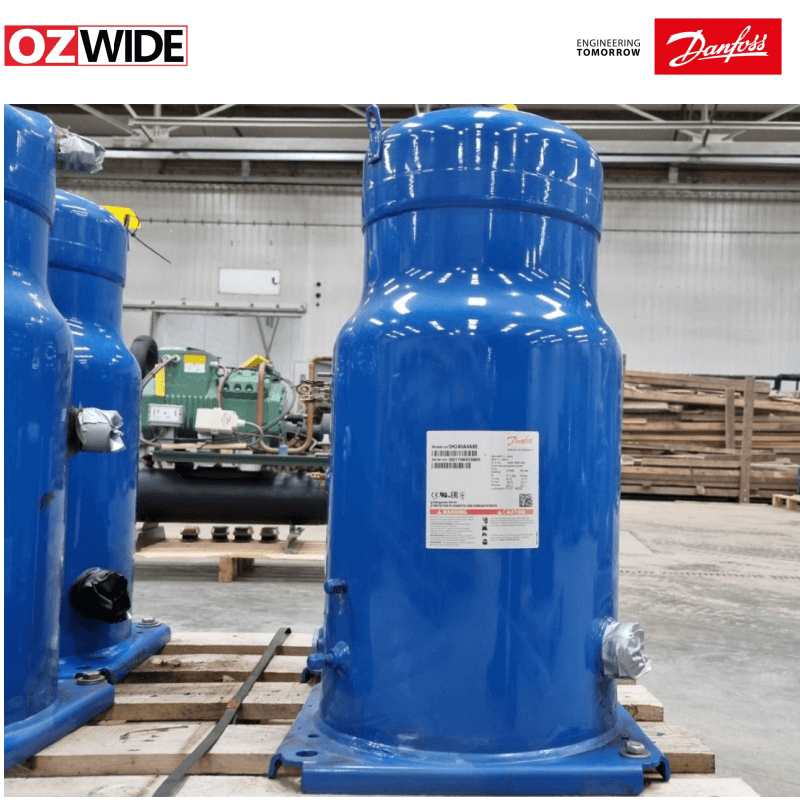

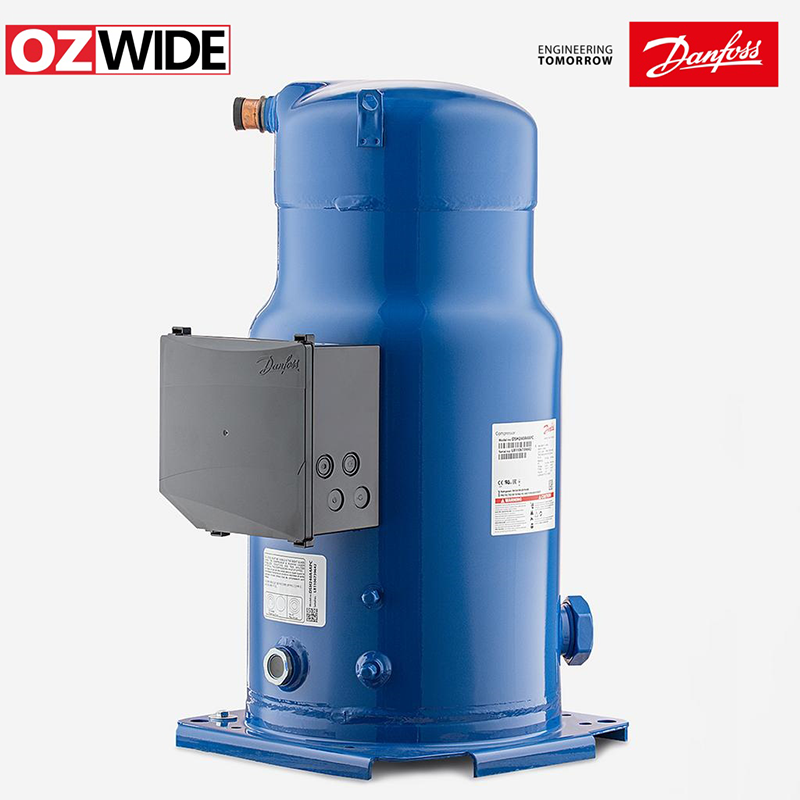

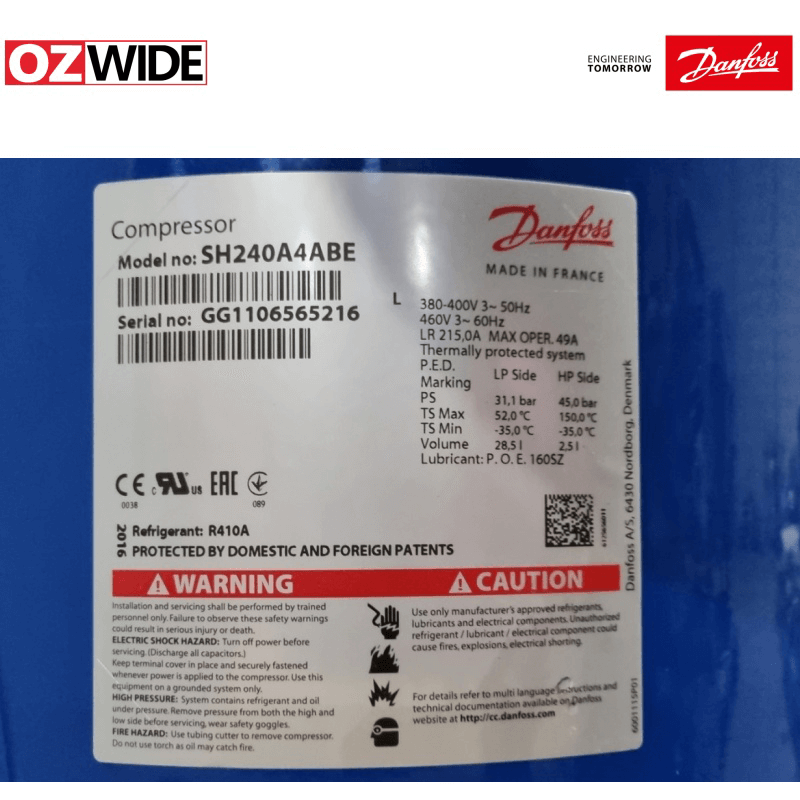

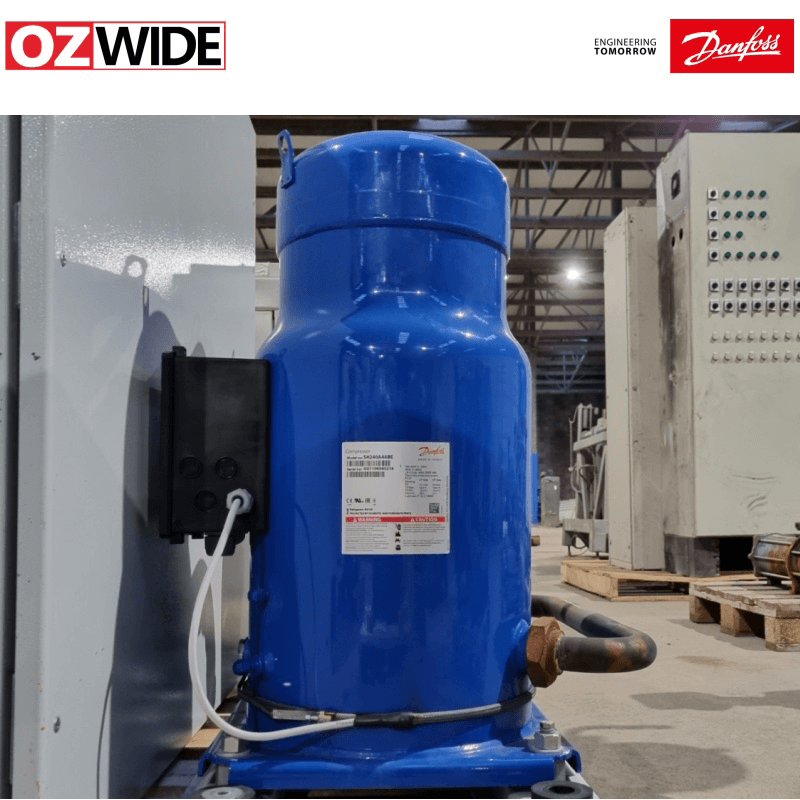

SH 240 |
20 |
59700 |
203800 |
18.50 |
3.23 |
11.02 |
227.60 |
39.6 |
6.7 |
108.0 |
SH 295* |
25 |
73200 |
249800 |
22.51 |
3.25 |
11.09 |
276.20 |
48.1 |
6.7 |
111.0 |
SH380 |
30 |
90500 |
308900 |
28.18 |
3.21 |
10.96 |
345.00 |
60.0 |
6.7 |
159.0 |
SH 485 |
40 |
117543 |
401068 |
35.58 |
3.30 |
11.27 |
442.60 |
77.0 |
6.7 |
175.0 |
(1) 名义速度的排量: 2900 rpm（50 Hz） (2) 净重（含油） * SH 295 取代 SH 300。SH 300 型号仍可用于售后市场，技术细节请参考数据表。 |
||||||||||
TR: 冷吨 EER: 能效比 COP: 性能系数 |
标准额定条件 ARI 标准 制冷剂: R410A |
蒸发温度:7.2 ℃ 冷凝温度: 54.4 ℃ |
过热度: 11.1 K 过冷度: 8.3 K |
|||||||
