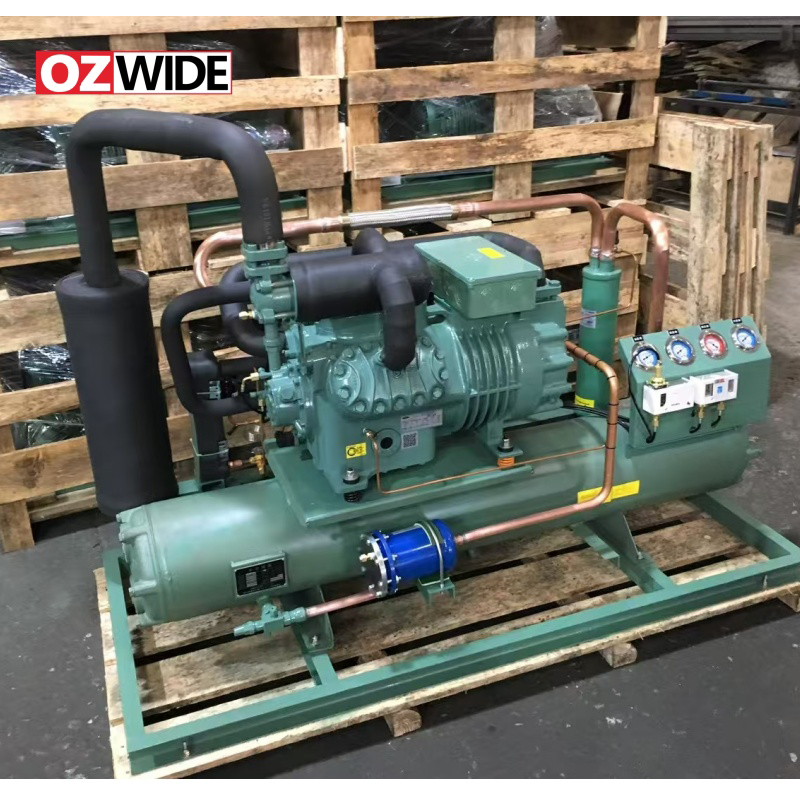

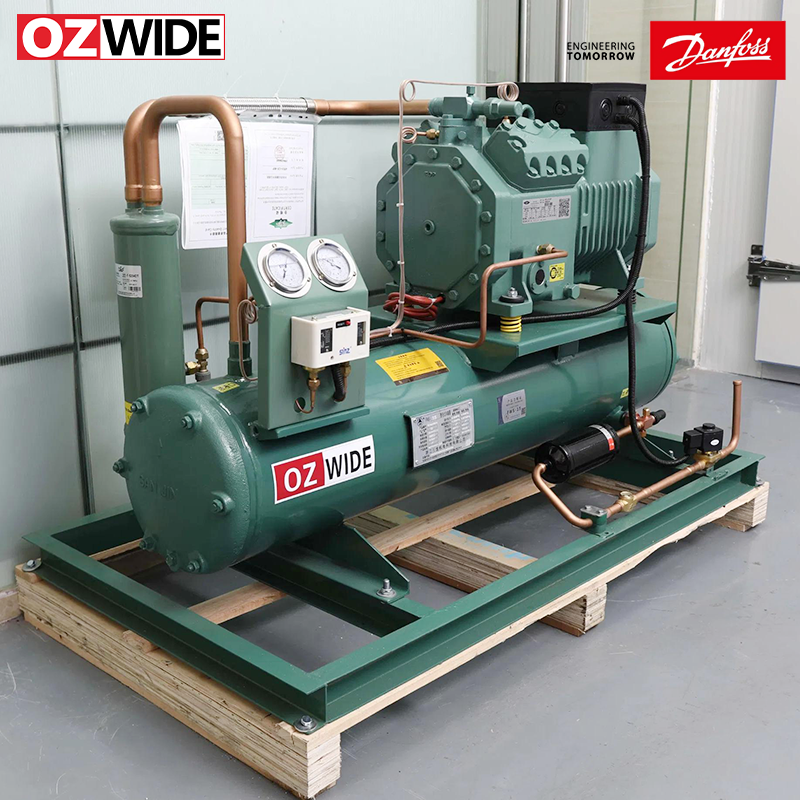

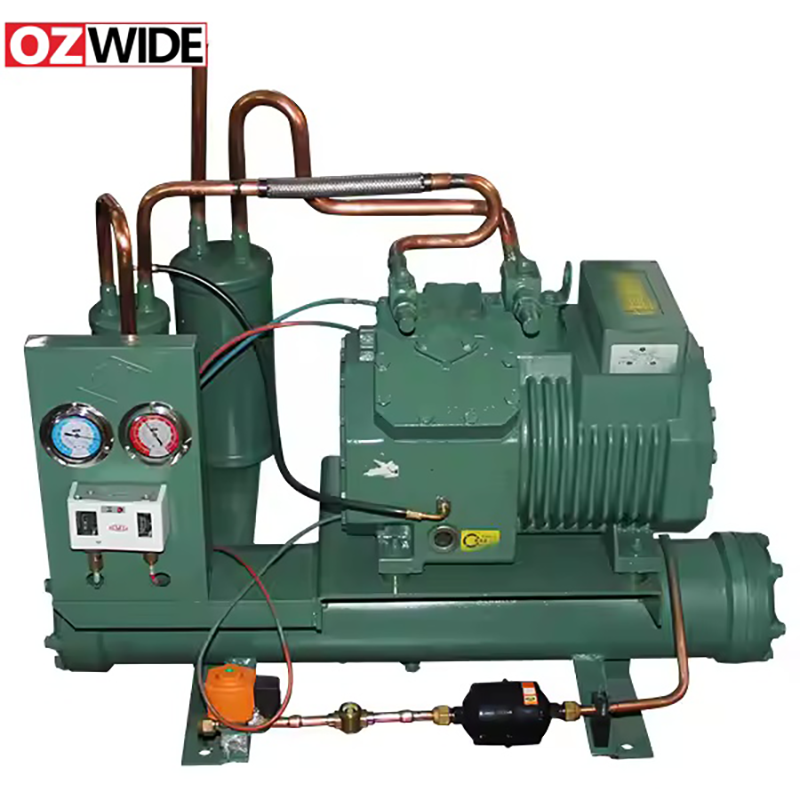

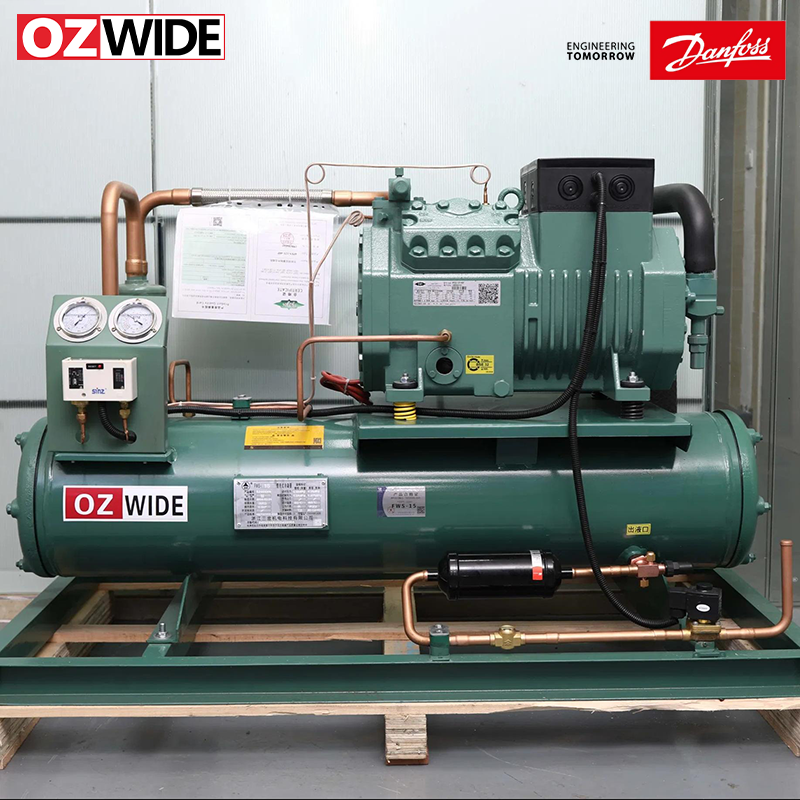

Bitzer water cooling unit is a refrigeration equipment that uses a semi-hermetic refrigeration compressor, which is characterized by high efficiency, reliability and strong adaptability. The following are the main features and performance parameters of Bitzer water cooling unit:
High-efficiency heat exchange : Bitzer water cooling unit uses a high-efficiency shell and tube condenser, which has high heat exchange efficiency and long service life . Its shell and tube water condenser uses high-efficiency external threaded copper tubes to further improve the heat exchange efficiency.
Reliable operation: The unit uses domestic or imported high-quality refrigeration accessories and is fully equipped to ensure good reliability of the unit. In addition, the unit is equipped with a waterproof terminal junction box for easy wiring and maintenance.
Wide applicability: Bitzer water-cooled units are suitable for a variety of refrigeration equipment, such as fresh-keeping, refrigeration, ice making and chilled water, etc., with a wide temperature range. Some models support multi-stage capacity adjustment (0-100% stepless adjustment) to meet different load requirements.
Environmentally friendly design: The unit is compatible with a variety of refrigerants, including R134a, R410A and natural refrigerants (such as CO2), meeting environmental protection requirements.
Energy-saving design: Some models use variable frequency drive technology with high energy efficiency ratio. Some models can reach an energy efficiency ratio of more than 6.0. In addition, the unit can operate stably in a wide temperature range (-40℃ to 55℃).

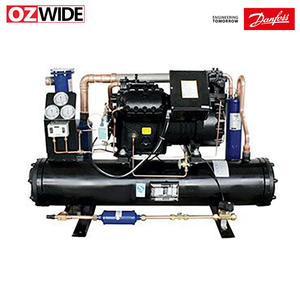

Copeland semi-hermetic water cooled condensing unit uses Copeland semi-hermetic compressor as its core component. Miracle Copeland semi-hermetic water cooled condensing unit also uses high-efficiency shell heat exchangers, which have high heat exchange efficiency, long life, beautiful appearance, and other advantages. When the compressor is running, the noise of the whole machine is small, the efficiency is high, and the whole machine is beautiful.Miracle Copeland water cooled condensing unit can change the unit configuration appropriately according to your market requirements. Basic customization content includes water cooled condensing unit cylinder head fan, compressor spray system, etc. For detailed water cooled condensing unit configuration table, please contact Miracle water cooled condensing unit team, Miracle water cooled condensing unit team will give you the fastest answer!
SEMI - HERMETIC COMPRESSOR & WATER-COOLED CONDENSING UNIT CAPACITY
R22 (50Hz 380v)
Model | Condensing temperature(℃) | ↓ | Capacity Qo(kw) Power Consumption Pe(kw) | ||||||||||
| Evaporating temperature(℃) | |||||||||||||
| 12.5 | 10 | 7.5 | 5 | 0 | -5 | -10 | -15 | -20 | -25 | -30 | |||
3HP | 40 | Qo | 7360 | 5800 | 4520 | 3360 | 2590 | ||||||
4HPH | 40 | Qo | 9150 | 7230 | 5670 | 4230 | 3300 | ||||||
4HPH | 40 | Qo | 14440 | 13180 | 10760 | 9150 | 7230 | 5670 | 4230 | 3300 | |||
5HP | 40 | Qo | 11690 | 9550 | 7580 | 6020 | 3300 | ||||||
5HPH | 40 | Qo | 22700 | 20810 | 19010 | 17360 | 14710 | 11690 | 9550 | 7580 | 6020 | 4520 | |
8HPH | 40 | Qo | 27870 | 25450 | 20820 | 16880 | 13410 | 10440 | 8210 | 4520 | |||
10HP | 40 | Qo | 23610 | 19320 | 15270 | 12040 | 6200 | ||||||
10HPH | 40 | Qo | 44390 | 40720 | 37190 | 33970 | 28760 | 23610 | 19320 | 15270 | 12040 | 9110 | |
15HP | 40 | Qo | 34710 | 28120 | 22440 | 17710 | 9110 | ||||||
15HPH | 40 | Qo | 65440 | 61020 | 55680 | 49510 | 42340 | 35280 | 28450 | 22660 | 17670 | 13360 | |
V3HP | 40 | Qo | 11000 | 8850 | 7010 | 5890 | 4560 | 3460 | |||||
V5HPH | 40 | Qo | 21150 | 19360 | 17710 | 16150 | 13470 | 11010 | 8860 | 7010 | 5420 | 4050 | 2940 |
V4HP | 40 | Qo | 13560 | 10960 | 8700 | 7400 | 5740 | 4350 | |||||
V6HPH | 40 | Qo | 26220 | 24100 | 21950 | 20040 | 16590 | 13570 | 10970 | 8710 | 6770 | 5110 | 3730 |
V5HP | 40 | Qo | 16330 | 13190 | 10480 | 8650 | 6740 | 5120 | |||||
V7HPH | 40 | Qo | 31530 | 28860 | 26390 | 24110 | 20140 | 16330 | 13190 | 10480 | 8150 | 6210 | 4500 |
V6HP | 40 | Qo | 19650 | 16080 | 12820 | 10020 | 7620 | 5650 | |||||
V9HPH | 40 | Qo | 37740 | 34580 | 31640 | 28960 | 23980 | 19650 | 16080 | 12830 | 10030 | 7630 | 5660 |
Note：
1.The refrigerating effect is got on the basis of suction temperature 20℃ and the degree of supercooling 5℃.
2.If the service temperature is very low, a cooling spray system should be equiped. For the details please refer to the compressor instructions.
SEMI-HERMETIC COMPRESSOR & WATER-COOLED CONDENSING UNIT CAPACITY
R22 Watt(50Hz 380v)
Model | Condensing temperature(℃) | ↓ | Capacity Qo(kw) Power Consumption Pe(kw) | ||||||||||
| Evaporating temperature(℃) | |||||||||||||
| 12.5 | 10 | 7.5 | 5 | 0 | -5 | -10 | -15 | -20 | -25 | -30 | |||
V8HP | 40 | Qo | 26390 | 21490 | 17310 | 13870 | 10780 | 8040 | |||||
V12HPH | 40 | Qo | 50120 | 45250 | 41470 | 37930 | 31580 | 26260 | 21190 | 17040 | 13570 | 10470 | 7820 |
V10HP | 40 | Qo | 30520 | 24940 | 20120 | 16060 | 12460 | 9310 | |||||
V15HPH | 40 | Qo | 59690 | 54230 | 50180 | 45410 | 37680 | 30990 | 25220 | 20130 | 16030 | 12300 | 9130 |
V12HP | 40 | Qo | 35550 | 29060 | 23430 | 18600 | 14470 | 10710 | |||||
V20HPH | 40 | Qo | 68480 | 62760 | 57520 | 52570 | 43650 | 35890 | 29150 | 24050 | 18340 | 14070 | 10430 |
V15HP | 40 | Qo | 45210 | 34500 | 29440 | 23210 | 17860 | 13350 | |||||
V25HPH | 40 | Qo | 86570 | 79430 | 72770 | 66500 | 55300 | 45500 | 37010 | 29730 | 23400 | 18020 | 13450 |
V20HP | 40 | Qo | 51960 | 40280 | 34060 | 26770 | 20530 | 15700 | |||||
W25HP | 40 | Qo | 68340 | 55770 | 44700 | 35240 | 26920 | 20030 | |||||
W30HP | 40 | Qo | 77950 | 63520 | 51100 | 40410 | 31040 | 23110 | |||||
V30HPH | 40 | Qo | 98580 | 90460 | 82920 | 75860 | 63060 | 52260 | 40480 | 34360 | 27170 | 20930 | 15900 |
W35HPH | 40 | Qo | 129490 | 118930 | 109020 | 99800 | 83080 | 68820 | 56050 | 45050 | 35580 | 27180 | 20150 |
W40HPH | 40 | Qo | 147960 | 135830 | 124460 | 113770 | 94650 | 77950 | 63520 | 51100 | 40410 | 31330 | 23690 |
W40HP | 40 | Qo | 92170 | 76260 | 60750 | 48230 | 37150 | 17890 | |||||
W50HPH | 40 | Qo | 173900 | 159700 | 146430 | 134010 | 111660 | 92370 | 76460 | 60850 | 48430 | 37350 | 27990 |
Note：
1.The refrigerating effect is got on the basis of suction temperature 20℃ and the degree of supercooling 5℃
2. If the service temperature is very low, a cooling spray system should be equiped. For the details please refer to the compressor instructions.
SEMI-HERMETIC COMPRESSOR & WATER-COOLED CONDENSING UNIT CAPACITY
R134a Watt(50Hz 380v)
Model | Condensing temperature(℃) | ↓ | Capacity Qo(kw) Power Consumption Pe(kw) | ||||||||||
| Evaporating temperature(℃) | |||||||||||||
| 12.5 | 10 | 7.5 | 5 | 0 | -5 | -10 | -15 | -20 | -25 | -30 | |||
3HPY | 40 | Qo | 9940 | 9000 | 8010 | 7350 | 6140 | 4810 | 3870 | 2900 | 1910 | 1400 | 930 |
4HPY | 40 | Qo | 11080 | 10090 | 9160 | 8290 | 6670 | 5670 | 4320 | 3310 | 2240 | 1580 | 1080 |
5HPY | 40 | Qo | 14590 | 13290 | 12060 | 10920 | 9120 | 7133 | 5710 | 4450 | 3190 | 2290 | 1510 |
8HPHY | 40 | Qo | 21330 | 19440 | 16750 | 14000 | 12917 | 10300 | 8010 | 6130 | 4350 | 3150 | |
10HPY | 40 | Qo | 28550 | 26020 | 23590 | 21300 | 17850 | 14400 | 11560 | 8970 | 6380 | 4640 | |
15HPY | 40 | Qo | 42080 | 38350 | 24780 | 31430 | 26280 | 21120 | 16820 | 13180 | 9400 | 6800 | 4800 |
V3HPY | 40 | Qo | 13790 | 12530 | 11380 | 10300 | 8370 | 6720 | 5310 | 4110 | 3100 | 2240 | 1560 |
V4HPY | 40 | Qo | 17850 | 16220 | 14720 | 13330 | 10840 | 8720 | 6910 | 5380 | 4110 | 3040 | 2160 |
V5HPY | 40 | Qo | 21270 | 19360 | 17580 | 15950 | 13010 | 10480 | 8310 | 6480 | 4930 | 3640 | 2580 |
V6HPY | 40 | Qo | 25480 | 23180 | 21070 | 19100 | 15590 | 12570 | 10010 | 7820 | 5980 | 4430 | 3150 |
V8HPY | 40 | Qo | 33270 | 30280 | 27490 | 24890 | 20290 | 16340 | 12960 | 10080 | 7650 | 5620 | 3910 |
V10HPY | 40 | Qo | 38810 | 35280 | 32050 | 29060 | 23670 | 19020 | 15050 | 11680 | 8820 | 6410 | 4390 |
V12HPY | 40 | Qo | 44390 | 40380 | 36700 | 33270 | 26310 | 21850 | 17330 | 13480 | 10230 | 7500 | 5220 |
V15HPY | 40 | Qo | 59460 | 54030 | 48890 | 44230 | 35890 | 28710 | 22650 | 17560 | 13290 | 9760 | 6870 |
V20HPY | 40 | Qo | 66570 | 61430 | 54830 | 49580 | 40210 | 32230 | 25450 | 19770 | 14990 | 11040 | 7820 |
W25HPY | 40 | Qo | 88780 | 80680 | 73050 | 66100 | 53560 | 42900 | 33870 | 26200 | 19830 | 14570 | 10260 |
W30HPY | 40 | Qo | 99920 | 90740 | 82250 | 74410 | 60370 | 48430 | 38210 | 29660 | 22500 | 16590 | 11730 |
W40HPY | 40 | Qo | 117390 | 106690 | 96760 | 87590 | 71160 | 57210 | 45270 | 35240 | 26880 | 19920 | 14220 |
Note：
1.The refrigerating effect is got on the basis of suction temperature 20℃ and the degree of supercooling 5℃.
2.If the service temperature is very low, a cooling spray system should be equiped. For the details please refer to the compressor instructions.
SEMI·HERMETIC COMPRESSOR & WATER-COOLED CONDENSING UNIT CAPACITY
R404A Watt(50Hz 380v)
Model | Condensing temperature(℃) | ↓ | Capacity Qo(kw) Power Consumption Pe(kw) | ||||||||||
| Evaporating temperature(℃) | |||||||||||||
| 7.5 | 5 | 0 | -5 | -10 | -15 | -20 | -25 | -30 | -35 | -40 | |||
3HPHY | 40 | Qo | 8160 | 6480 | 5120 | 3870 | 3040 | 2200 | 1590 | 1080 | |||
4HPHY | 40 | Qo | 9470 | 8040 | 6010 | 4550 | 3630 | 2530 | 1650 | 1280 | |||
4HPHY | 40 | Qo | 14680 | 13440 | 11050 | 9470 | 8040 | 6010 | 4550 | 3630 | 2530 | 1650 | 1280 |
5HPY | 40 | Qo | 12100 | 9980 | 8000 | 6480 | 4970 | 3590 | 2600 | 1770 | |||
5HPHY | 40 | Qo | 19330 | 17700 | 15100 | 12100 | 9980 | 8000 | 6480 | 4970 | 3590 | 2600 | 1770 |
8HPHY | 40 | Qo | 25950 | 21390 | 17480 | 14000 | 11080 | 8830 | 6820 | 5260 | 3810 | 2600 | |
10HPY | 40 | Qo | 24640 | 20490 | 16300 | 12960 | 10240 | 7390 | 5700 | 3920 | |||
10HPHY | 40 | Qo | 37810 | 34630 | 29540 | 24440 | 20190 | 16200 | 12860 | 10040 | 7730 | 5600 | 3820 |
15HPY | 40 | Qo | 35420 | 28300 | 23000 | 18970 | 14680 | 11180 | 8080 | 5360 | |||
15HPHY | 40 | Qo | 55740 | 51000 | 43490 | 35220 | 28100 | 22800 | 18870 | 14580 | 11080 | 8070 | 5280 |
V3HPY | 40 | Qo | 11500 | 9470 | 7700 | 6170 | 4860 | 3730 | 2770 | 1970 | |||
V5HPHY | 40 | Qo | 18150 | 16650 | 13950 | 11590 | 9530 | 7750 | 6210 | 4870 | 3740 | 2780 | 1960 |
V4HPY | 40 | Qo | 14370 | 11810 | 9600 | 7680 | 6040 | 4630 | 3430 | 2420 | |||
V6HPHY | 40 | Qo | 23030 | 21140 | 17690 | 14670 | 12060 | 9790 | 7820 | 6130 | 4670 | 3450 | 2410 |
V5HPY | 40 | Qo | 17560 | 14450 | 11750 | 9410 | 7400 | 5690 | 4230 | 3000 | |||
V7HPHY | 40 | Qo | 27360 | 25070 | 20990 | 17400 | 14280 | 11570 | 9220 | 7210 | 5480 | 4020 | 2790 |
V6HPY | 40 | Qo | 21000 | 17330 | 14130 | 11360 | 8980 | 6940 | 5210 | 3750 | |||
V9HPHY | 40 | Qo | 32690 | 30000 | 25170 | 20990 | 17320 | 14120 | 11370 | 8990 | 6960 | 5220 | 3750 |
Note：
1.The refrigerating effect is got on the basis of suction temperature 20℃ and the degree of supercooling 5℃.
2.If the service temperature is very low, a cooling spray system should be equiped. For the details please refer to the compressor instructions.
SEMI · HERMETIC COMPRESSOR & WATER-COOLED CONDENSING UNIT CAPACITY
R404A Watt(50Hz 380v)
Model | Condensing temperature(℃) | ↓ | Capacity Qo(kw) Power Consumption Pe(kw) | ||||||||||
| Evaporating temperature(℃) | |||||||||||||
| 7.5 | 5 | 0 | -5 | -10 | -15 | -20 | -25 | -30 | -35 | -40 | |||
V8HPY | 40 | Qo | 27610 | 22680 | 18380 | 14690 | 11500 | 8780 | 6490 | 4560 | |||
V12HPY | 40 | Qo | 43280 | 39650 | 33130 | 27410 | 22490 | 18170 | 14460 | 11260 | 8550 | 6240 | 4300 |
V10HPHY | 40 | Qo | 32140 | 26370 | 21390 | 17040 | 13330 | 10170 | 7480 | 5210 | |||
V15HPY | 40 | Qo | 51940 | 47610 | 39750 | 32880 | 26910 | 21740 | 17270 | 13420 | 10140 | 7350 | 4990 |
V12HPY | 40 | Qo | 37280 | 30540 | 24550 | 19610 | 15360 | 11720 | 8650 | 6060 | |||
V20HPHY | 40 | Qo | 60200 | 55300 | 46100 | 38100 | 30310 | 24440 | 19580 | 15040 | 11330 | 8300 | 5570 |
V15HPY | 40 | Qo | 48110 | 39720 | 32430 | 26160 | 20760 | 16150 | 12220 | 8920 | |||
V25HPHY | 40 | Qo | 74700 | 68530 | 57430 | 47680 | 39230 | 30850 | 25530 | 20080 | 15370 | 11390 | 8030 |
V20HPY | 40 | Qo | 53170 | 47000 | 37780 | 30240 | 24000 | 18850 | 14350 | 10540 | |||
W25HPY | 40 | Qo | 72090 | 59450 | 48440 | 39190 | 30950 | 23960 | 18220 | 13300 | |||
V30HPHY | 40 | Qo | 85310 | 78260 | 65460 | 52550 | 44970 | 36630 | 29000 | 23000 | 17890 | 13790 | 7970 |
W30HPY | 40 | Qo | 83680 | 69150 | 56650 | 45850 | 36590 | 28560 | 21780 | 15980 | |||
W35HPHY | 40 | Qo | 112230 | 102870 | 86180 | 71500 | 59070 | 47960 | 38420 | 30180 | 23200 | 17320 | 12360 |
W40HPHY | 40 | Qo | 12800C | 117390 | 89240 | 81480 | 67420 | 54820 | 44080 | 34960 | 27120 | 20540 | 15000 |
W40HPY | 40 | Qo | 99910 | 82620 | 67630 | 54630 | 43460 | 33900 | 25690 | 18760 | |||
W50HPHY | 40 | Qo | 153120 | 140400 | 117390 | 100190 | 82820 | 67730 | 54830 | 43560 | 34100 | 25790 | 18860 |
Note：
1.The refrigerating effect is got on the basis of suction temperature 20℃ and the degree of supercooling 5℃.
2.If the service temperature is very low, a cooling spray system should be equiped. For the details please refer to the compressor instructions.
